Holmium Laser
Product Features
- High‑power family: 100W, 120W, and 160W models with adjustable energy (0.1–8.0 J), frequency (2–120 Hz), and pulse duration (100–1500 µs).
- Multi Expert Modes for flexible pulse‑length selection across different surgical applications.
- High‑resolution color touch screen supporting remote OTA software upgrade.
- Multi‑function foot pedal enabling real‑time mode switching without manual assistance.
- Enhanced cooling system for quiet operation and stable output during long procedures.
- Rotatable console (180°) and vertical fiber holder for ergonomic, safe operation.
- User‑friendly interface providing quick access to parameters without complex menus.
- Compact mobile design with lockable wheels and removable blast shield for easy maintenance.
Effects / Clinical Performance
- Efficient tissue removal: Rapid vaporization and cutting with reliable hemostasis and minimal bleeding.
- Versatile operation: Supports enucleation, ablation, resection, and lithotripsy for stones of any composition or location.
- Safe energy profile: Penetration depth < 0.4 mm and short 0.25 ms pulses prevent carbonization and surrounding tissue damage.
- Stable performance: Multi‑channel laser cavity with safety compensation ensures continuous, consistent power delivery.
- Superior HoLEP results: High frequency and pulse energy provide excellent efficiency in prostate and stone treatment.
- Minimally invasive for patients: Short operation time, reduced hospital stay, fast recovery, and early catheter removal.
- Clinical advantages: No postoperative bleeding, no water intoxication, and no need to stop anticoagulant therapy.

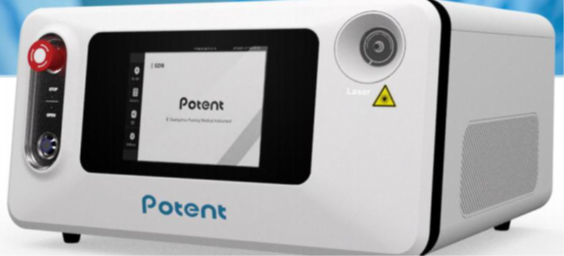

Thulmium Laser
Product Features
- Thulium Fiber Laser technology (1.94 µm) offering high absorption in water and tissue for precise incision and ablation.
- Available power models: 40 W and 65 W, with adjustable energy range (0.02 – 6 J) and frequency up to 2500 Hz.
- Air‑Cooling System eliminating the need for external water circulation, reducing maintenance and operational cost.
- Compact design (35 kg) using a standard electrical plug (100–240 V, 50/60 Hz, 1000 VA).
- Low noise level ensuring a quieter surgical environment.
- Dual Pedal Foot Switch (orange and blue) allows fast toggling between fragmentation and dusting modes, with standby activation.
- RFID Fiber Recognition System providing automatic fiber type detection for safety and accuracy.
- Adjustable pulse duration and flexible silica fibers for various surgical indications.
- User‑friendly touchscreen interface displaying key parameters clearly.
- Excellent energy efficiency, achieving high performance with one‑eighth the energy consumption of high‑powered systems.
Effects / Clinical Performance
- Efficient lithotripsy: Fast and precise stone fragmentation with support for both dusting and popcorning modes.
- Wide frequency range (up to 2500 Hz) enabling superior control over energy delivery and procedural speed.
- Soft tissue surgery: Provides fine coagulation and ablation with minimal penetration (< 0.2 mm) to protect adjacent tissue.
- Better hemostasis: Strong water absorption leads to effective coagulation and reduced bleeding.
- Dual operation modes:
- Super‑pulsed mode for deep coagulation with minimal thermal damage.
- Continuous mode for smooth cutting and high‑speed tissue removal.
- Flexible small‑core fibers allow greater maneuverability and irrigation flow in endoscopic procedures.
- Versatile applications: Used for BPH surgery, soft‑tissue ablation, and lithotripsy, with excellent results in urological cases.
- Reliable performance: Consistent power output with efficient cooling—suited for continuous clinical use.

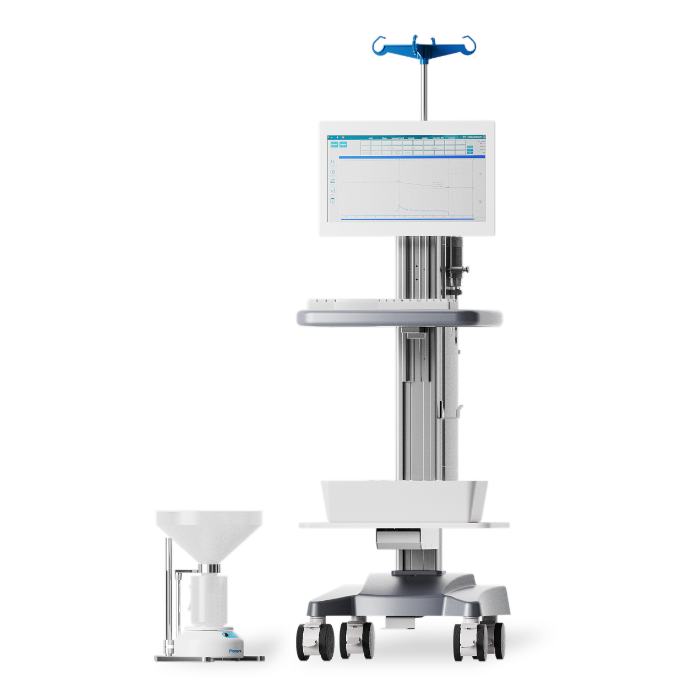

Urodynamic
Product Features
- Comprehensive diagnostic platform for full-spectrum urodynamic testing including cystometry, uroflowmetry, pressure-flow study, EMG, leak-point pressure, and urethral pressure profiling.
- Measurement programs comply with ICS standards, ensuring global compatibility and reliability.
- Built-in and external pressure sensors (Bladder/Rectal, F6–F10 size) providing accurate monitoring of intravesical and intra-abdominal pressures.
- Infusion (perfusion) and bolus pumps with automated flow control; filling rate adjustable from 2 mL/min – 80 mL/min.
- Automatic safety functions:
- Alerts the clinician when bladder pressure > 40 cmH₂O.
- Automatically stops filling when pressure > 150 cmH₂O.
- Wireless uroflowmeter (rotary or gravimetric type) with high accuracy (flow 0–1000 mL, ±2%).
- Non-invasive bladder contractility measurement to reduce patient discomfort and test risks.
- Powerful data management & analysis software, enabling real-time display and one-touch report generation.
- Modular design: separate pump, puller, and recording modules for flexible workstation configuration.
- Automatic and intelligent calibration of pressure channels for error reduction.
- Upgradable to video-urodynamic system for comprehensive visual evaluation.
- Complies with ISO 13485 and certified as one of only two Chinese manufacturers meeting international urodynamic standards.
Effects / Clinical Performance
- Accurate and reproducible diagnosis: Provides quantitative evaluation of lower urinary tract function based on ICS protocols.
- Enhances diagnostic confidence and reduces dependence on subjective clinical judgment.
- Improves treatment outcomes in patients with bladder outlet obstruction, neurogenic bladder, and voiding dysfunction.
- Automatic pressure control safeguards patient safety during the test by preventing overdistension.
- Shortens examination time and minimizes human error with digital automation and integrated safety alarms.
- Proven efficiency: Reduces unnecessary cystometries and optimizes TURP success rates through precise functional assessment.
- Clinically validated system used in major teaching hospitals across China for both male and female urinary studies.
- Flexible test structure: supports simultaneous pressure, flow, and EMG acquisition; allows combination testing according to clinical requirement.
- Higher patient comfort: wireless uroflowmeter and modular pump design reduce tubing clutter and improve tolerance.
- Cost-effective and durable, with stable longitudinal performance and strong post-service support.
Main Clinical Applications
- Pressure-flow study (PFS)
- Uroflowmetry (Qmax, Qave, Voiding Time)
- Leak Point Pressure Testing
- Urethral Pressure Profiling (UPP)
- Bladder compliance and capacity measurements
- EMG analysis of pelvic floor muscles
- Video-urodynamic (optional configuration)
Urofelowmeter
Product Features
- Designed for non-invasive measurement of urine flow parameters — including volume, flow rate, and time — following ICS (International Continence Society) standards.
- Utilizes precision weighing sensor technology to ensure accurate, reliable, and repeatable urinary flow measurements.
- Wireless data transmission for maximum patient privacy and natural testing environment.
- Equipped with a funnel and height‑adjustable sensor, suitable for pediatric to adult use.
- Clean, hygienic setup design — easy to operate and maintain.
- Three configurable models (A Series, B Series, PC Series) available:
- A Series: portable unit with wireless handheld receiver.
- B Series: standalone device with local printer display.
- PC Series: computer‑connected version with real‑time software analysis and report output.
- Compatible with the Potent Urodynamic System for integrated diagnostic workflow.
Effects / Clinical Performance
- Provides accurate monitoring of urine flow curve, Qmax, Qave, voiding volume, and urination time.
- Delivers high‑precision results with flow rate error ≤ ±1 mL/s and urine volume error ≤ ±0.5%.
- Enables clinicians to evaluate bladder outlet obstruction, voiding dysfunction, and treatment effectiveness with objective data.
- Enhances diagnostic efficiency and patient comfort through wireless, non‑invasive operation.
- Suitable for hospital urology departments, research labs, and outpatient clinics.
